Product Details

Features

This is a rich multifunctional kit for Arduino with OPEN-SMART UNO R3 board and 9 sensor module, 4 display module and other accessories.

You can use the kit to do many projects such as Speak Clock / Speak Temperature / Clock display / Infrared Remote Control / Touch Control MP3 / MP3 Player / Ultrasonic Distance Measurement.

Easy to plug OPEN-SMART products with XH socket to the Easy IO shield and do not need to pay attention to the connection. So it is great for Training institutions and visual programming education

Compatible for Arduino UNO R3, OPEN-SMART UNO R3 is an ATMEGA328P development board.

The kit contains TF card, speaker, CR1220 battery, infrared remote control, and these are the necessary accessories for MP3,DS1307, infrared receiver.

And it contains ultrasonic sensor / water sensor / light sensor / vibration motor / I2C 1602 display, etc.

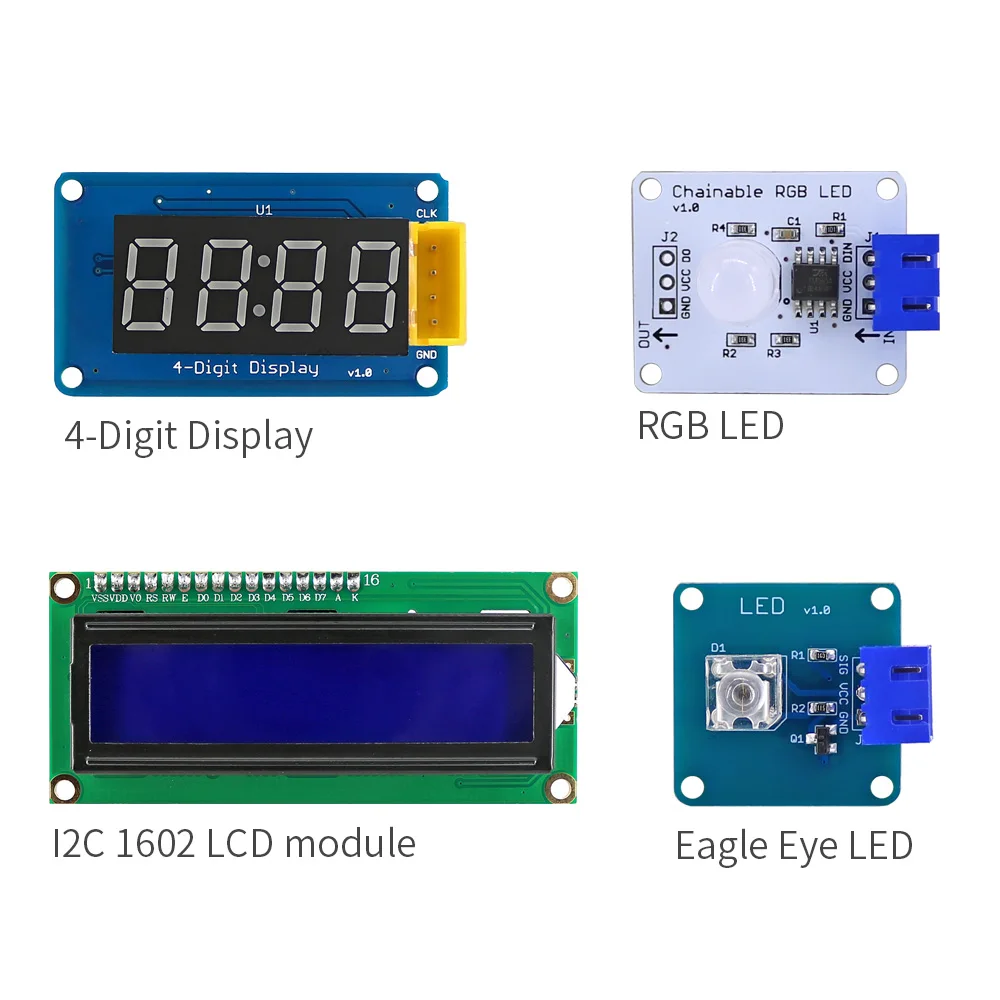

4 digit display: 4 digit tube (0.36 inches) which can display the clock point, it needs 2 pins to control and display the integer, clock, stopwatch, score and so on.

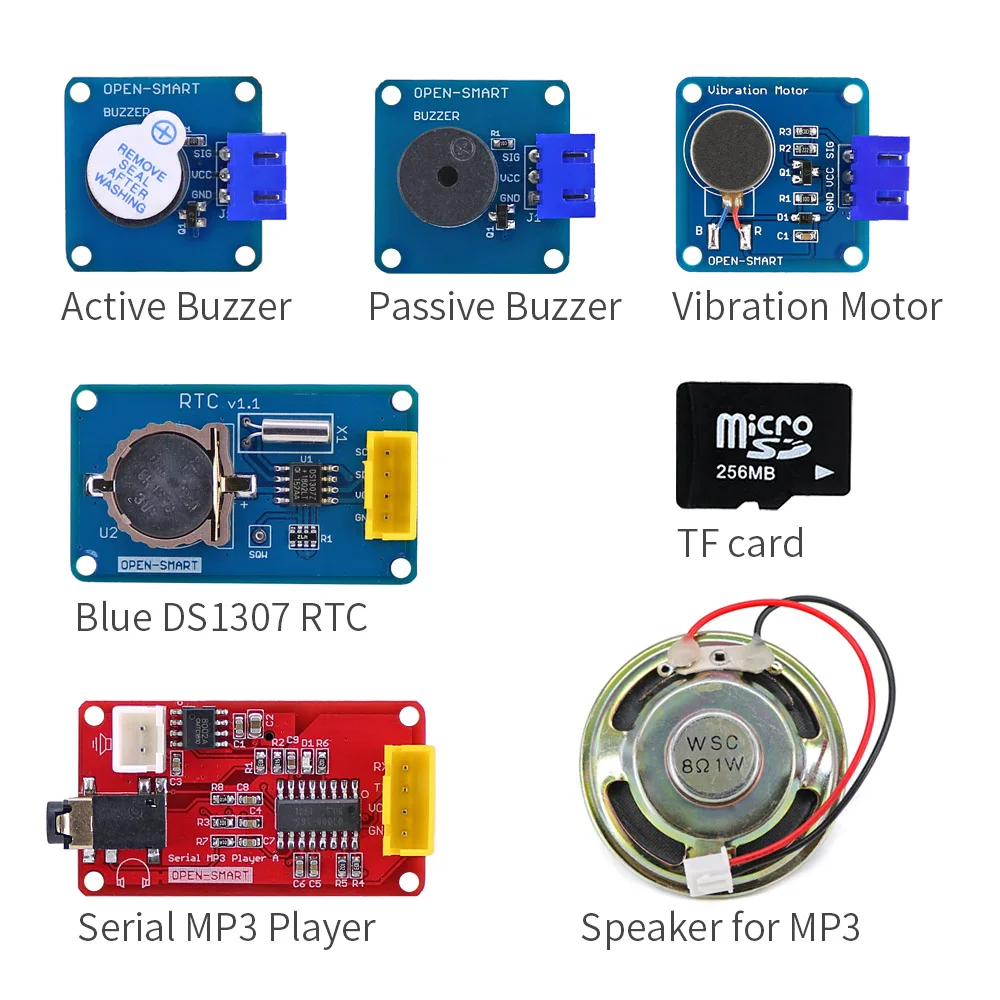

DS1307 clock: based on DS1307 high-precision real-time clock module, I2C interface, the address is 0x68.

Infrared receiver: It can receive the modulated infrared signal of 38KHz that is sent by the IR transmitter module and demodulate it into logic level, and it can complete the infrared remote control with the codec program.

Serial MP3: MP3 music player module is based on high-quality MP3 music chip, use D7 / D8 pins to be software serial port, you can send commands to switch songs, change the volume and play mode and other operations.

Rotation angle sensor: 10K ohm adjustable potentiometer knob angle sensor, use A0 pin, can be used for MP3 volume adjustment, 4-digit display brightness adjustment.

4-CH touch sensor: capacitive touch switch, only when you touch the corresponding position with your fingers, the module corresponding pin will output high level, otherwise it outputs low.

NTC Temperature Sensor: can measure the temperature directly in the water.

Vibration Motor: a mini vibration motor suitable as a non-audible indicator.

I2C 1602 LCD: a high-quality 2 line 16 character LCD module with I2C interface and it is a basic character LCD screen for lots of applications.

Features:

– Use bootloader for Arduino UNO R3

– It is compatible for Arduino UNO R3 program, expansion shields, IDE.

– Peripheral modules are rich in type, rich library, simple sketch codes, easy functions to use.

– Use through hole mount type B USB connector, consistent with Arduino UNO R3, ruggedness and long service life.

– You can burn the program with the type A male to type B male cable.

– Onboard 500mA resettable fuse to protect power supply from the USB port and the DC jack at the same time.

– USB interface driver chip: CH340, compatible with win7, win8, win10, linux, MAC OS.

– Microcontroller: ATmega328P

– Working voltage: 5V

– IO logic voltage: 5V

– Working current: 500mA (Max)

– Digital I/O Pins: 14 (of which 6 provide PWM output)

– Flash Memory: 32 KB of which 2 KB used by bootloader

– SRAM: 2KB

– EEPROM: 1KB

– Clock Speed: 16 MHz.

Photos

Part List ( Schematics and program can be sent , Please contact us)

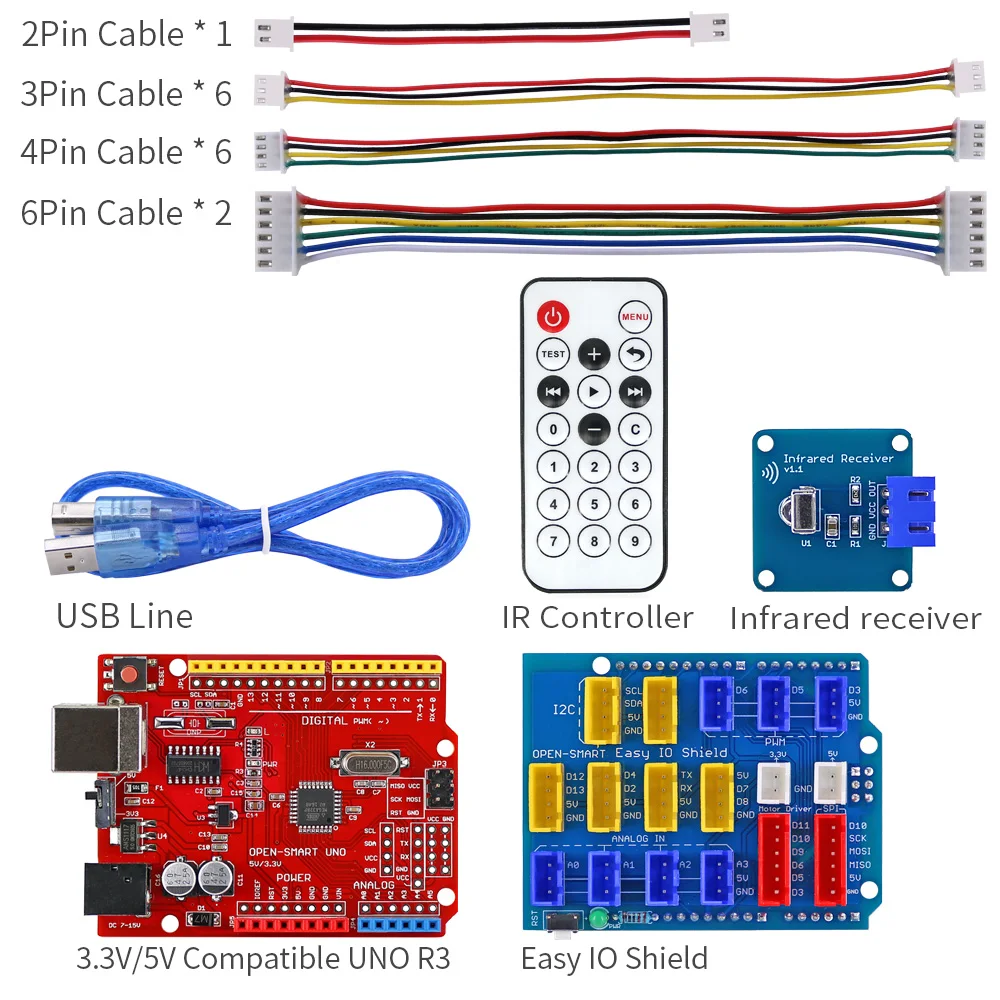

1 x Board

1 x Easy IO Shield

1 x USB cable (50cm)

1 x 2pin XH2.54MM cable (12cm)

6 x 3pin XH2.54MM cable (20cm)

6 x 4pin XH2.54MM cable (20cm)

2 x 6pin XH2.54MM cable (20cm)

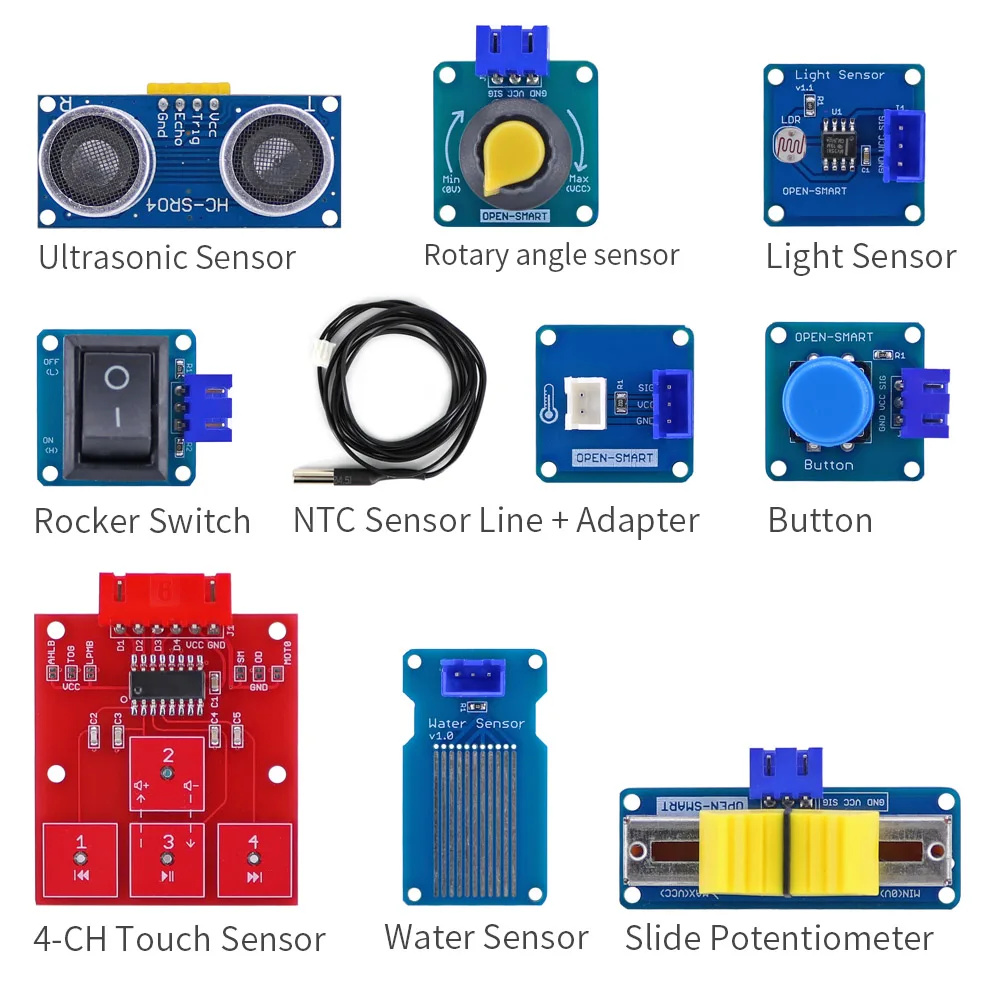

1 x Ultrasonic sensor

1 x Slide Potentiometer

1 x 4-CH Touch Sensor

1 x Button

1 x Water sensor

1 x Rocker switch

1 x NTC sensor(100cm) + Adapter module

1 x Light sensor

1 x Rotary angle sensor

1 x Vibration motor

1 x Serial MP3 Player

1 x Buzzer

1 x Passive buzzer

1 x Speaker

1 x Eagle eyes LED

1 x I2C 1602 LCD

1 x 4-Digit display

1 x RGB LED

1 x TF card (256MB)

1 x Blue DS1307 RTC ( built-in one CR1220 button battery 40mAh )

1 x Infrared Remote Control (built-in one CR2032 battery 80mAh)

1 x Infrared receiver
